    Multi Axis Rotation Stone Roller Screening Equipment For Small Production Line

    Ask Lasest Price
    Brand Name : BENO

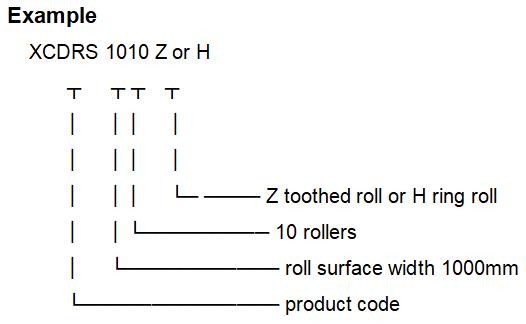

    Model Number : XCDRS1010
    Certification : CE, ISO9001
    Price : USD 73,972.60-87,096.77 one set
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets / year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Multi Axis Rotation Stone Roller Screening Equipment For Small Production Line

    Replaceable Vibrating Screen Roller Screening Machine For Small Production Line


    Equipment Principle

    The Roller Screening Machine uses multi-axis rotation to push the material forward and screen at the same time. Its working mechanism is that several screen shafts are arranged in a ladder shape, and each screen shaft rotates in the same direction to make the material move forward along the screen surface, while rolling and rotating the material. Wastes such as soil smaller than the screen shaft clearance fall from the screen shaft clearance under the action of its own gravity and the screen shaft rotating force, and ores larger than the screen shaft clearance remain on the screen surface and continue to move forward and enter the next crushing link for crushing.


    Equipment Advantages

    1. The treatment effect is good and the application range is wide.

    2. The parts are uniform and convenient for maintenance and replacement.

    3. Adopt wear-resistant materials to increase the wear resistance of equipment and prolong its service life.

    4. The whole is thick, stable and vibration-free.


    Technical Reference Data

    ModelRoll surface width (mm)Number of axesThroughput (t/h)Feed side length (mm)Roll shaft clearance (mm)Screening efficiency (%)Installed powerFlap drive push rod (optional for for electro hydraulic users)
    Power (kw)NumberModelThrust (kgf)Power (w)
    XCDRS100810008140-385≤50025-100802-48DT or DTY300370
    XCDRS101010168-490853-3.510
    XCDRS101212210-5959012
    XCDRS140814008294-700≤70035-120808DT or DTY500750
    XCDRS141010364-896853-7.510
    XCDRS141212455-10509012

    Picture Display

    Multi Axis Rotation Stone Roller Screening Equipment For Small Production Line

    Multi Axis Rotation Stone Roller Screening Equipment For Small Production Line


    Case Presentation

    Multi Axis Rotation Stone Roller Screening Equipment For Small Production Line
