    Anti Blocking Coal Screening Machines 200 To 550 TPH Medium Bearing Capacity

    Coal Screening Roller Screening Machine Medium Bearing Capacity 200-550 TPH Output


    Equipment Description

    The Roller Screening Machine is a screening equipment with high screening efficiency and good screening effect, and its application range is very wide. It can replace the vibrating screen and improve the working efficiency of the whole crushing production line.

    This Roller Screening Machine is mainly composed of frame, lining plate, reduction motor, roller shaft assembly (eight shafts and several teeth), bearing, cleaning device, anti-blocking signal, etc. The Roller Screening Machine has stable performance and good working performance.

    The drive mode of this Roller Screening Machine can be divided into unilateral drive and bilateral drive, and can also be split type. Customers can choose according to their own needs.


    Technical Reference Data

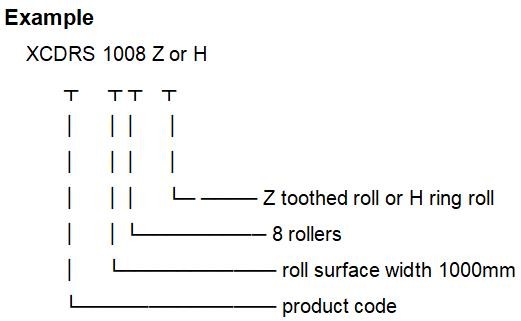

    ModelRoll surface width (mm)Number of axesThroughput (t/h)Feed side length (mm)Roll shaft clearance (mm)Screening efficiency (%)Installed powerFlap drive push rod (optional for for electro hydraulic users)
    Power (kw)NumberModelThrust (kgf)Power (w)
    XCDRS100810008200-550≤50025-100802-48DT or DTY300370
    XCDRS101010240-700853-3.510
    XCDRS101212300-8509012
    XCDRS140814008420-1000≤70035-120808DT or DTY500750
    XCDRS141010520-1280853-7.510
    XCDRS141212650-15009012
