    300-500 TPH Production Capacity Roll Crusher Machine Crushed Rock

    Ask Lasest Price
    Brand Name : BENO
    Model Number : XCMD850 * 2000(R)
    Certification : CE,ISO9001
    Price : USD 221,917.80-261,290.32 one set
    Payment Terms : L/C, T/T
    Supply Ability : 500 sets / year
    Delivery Time : 30-90 days
    • Product Details
    • Company Profile

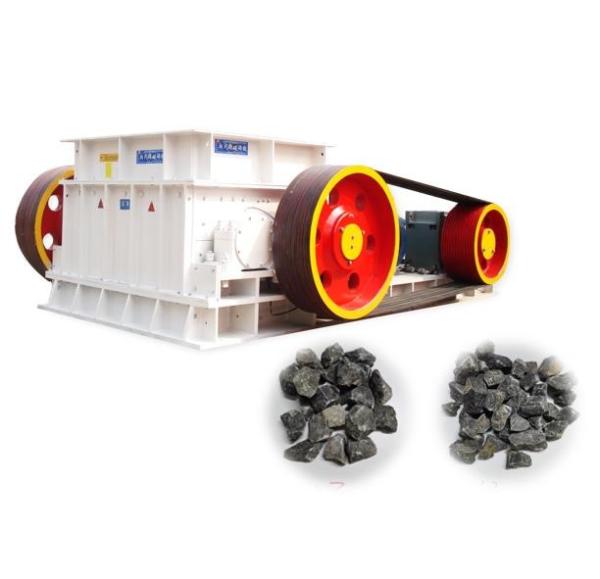

    300-500 TPH Production Capacity Roll Crusher Machine Crushed Rock

    300-500 TPH Production Capacity Roll Crusher Machine Limestone Crushing


    Product Description

    1. This equipment is called Roll Crusher Machine, with the model of 850 * 2000. It uses two motors with the power of 110 kW as the power source of the Roll Crusher Machine.

    2. The output of this Roll Crusher Machine is within the range of 300-500 tons per hour, and the feed size of the material is required to be less than or equal to 75 mm.

    3. The length and diameter of the toothed roller of this Roll Crusher Machine are 2000 mm and 850 mm respectively, and the total weight of the equipment is 36 tons.

    4. This Roll Crusher Machine is very stable, safe and reliable, wear-resistant and durable.


    Technical Reference Data

    ModelDiameter of roller (mm)Length of roller (mm)Maximum side length of feeding material (mm)Grain size of discharging material(mm)Production capacity (t/h)Power (kw)Soft connection weight (t)Direct connection weight (t)
    XCMD5005001000≤50≤10-2520-5015*29.58.2
    150030-6018.5*211.810.5
    200040-7022*214.512.8
    250050-8030*21816.3
    XCMD6506501000≤60≤10-2530-8045*212.310.5
    150050-10055*218.516
    200060-16075*22321
    250075-22090*22825
    XCMD7507501000≤70≤10-3050-15055*22321
    150080-18075*226.524.5
    2000100-20090*23027.2
    2500120-250110*233.830.8
    XCMD8508501000≤75≤10-30100-22075*22623.5
    1500200-40090*231.528.5
    2000300-500110*23633
    2500350-650132*23936
    XCMD100010001000≤100≤10-30250-45090*246.841
    1500350-550110*25246.2
    2000500-700132*25852.5
    2500650-800160*26560
    XCMD120012001500≤120≤10-30350-900160*28173
    2000450-1000185*29385
    2500600-1200220*210698
