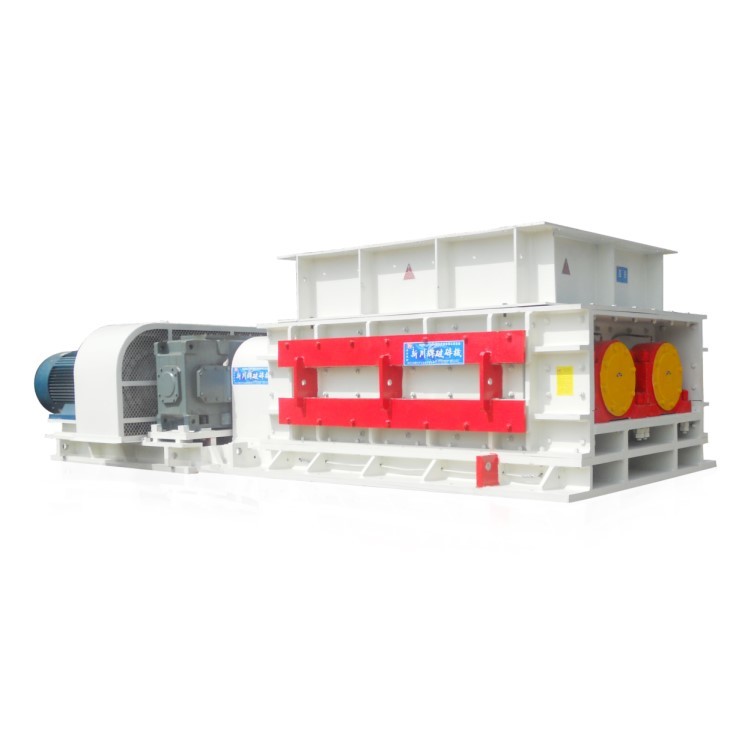

    Anti Abrasive Roll Crusher Machine TPH Large Processing Capacity Dual Motor

    Ask Lasest Price
    Brand Name : BENO
    Model Number : XCMD1200 * 1500(R)
    Certification : CE, ISO9001
    Price : USD 499,315.06-587,903.22 one set
    Payment Terms : L/C, T/T
    Supply Ability : 500 sets / year
    Delivery Time : 30-90 days
    • Product Details
    • Company Profile

    Anti Abrasive Roll Crusher Machine TPH Large Processing Capacity Dual Motor

    350-900 TPH Output Roll Crusher Machine Large Processing Capacity


    Equipment Principle

    Roll Crusher Machine uses the high extrusion pressure generated by the relative rotation of two wear-resistant crushing tooth rolls to crush materials. After the materials enter the gap between the two tooth rolls (V-shaped crushing chamber), they are subject to the extrusion pressure and shear force of the relative rotation of the two tooth rolls. Under the extrusion, shearing and meshing, the materials are broken to the required size and then discharged from the discharge port.

    The Roll Crusher Machine is commonly used in industries such as mining, construction, and recycling, where materials need to be crushed and reduced in size. Its ability to handle a wide range of feed sizes and produce a controlled discharging size makes it suitable for various applications. Whether it is reducing large rocks or processing different types of ores, the Roll Crusher Machine offers reliable performance and contributes to efficient material processing operations.


    Equipment Related Parameters

    1. Feed Size: The Roll Crusher Machine is designed to handle materials with a feed size of less than 120 mm. It is capable of reducing larger-sized materials into smaller particles for further processing or use.

    2. Discharging Size: The crushed material from the Roll Crusher Machine is discharged with a size of less than 10-30 mm. This indicates its ability to produce a controlled and desired size of the final product.

    3. Production Capacity: The Roll Crusher Machine offers a production capacity ranging from 350 to 900 tons per hour (TPH). It demonstrates its capability to handle a significant volume of material processing efficiently.

    4. Roller's Diameter: The rollers in the Roll Crusher Machine have a diameter of 1200 mm. The larger diameter allows for better crushing action and facilitates the handling of larger-sized materials.

    5. Roller's Length: The length of the rollers in the Roll Crusher Machine is 1500 mm. The longer length provides a larger surface area for crushing, ensuring effective reduction of the material size.

    6. Power: The Roll Crusher Machine is driven by two motors with a power rating of 160 kW each. The combined power of 320 kW ensures sufficient force and energy for crushing and processing materials.

    Anti Abrasive Roll Crusher Machine TPH Large Processing Capacity Dual Motor


    Technical Reference Data

    ModelDiameter of roller (mm)Length of roller (mm)Maximum side length of feeding material (mm)Grain size of discharging material(mm)Production capacity (t/h)Power (kw)Soft connection weight (t)Direct connection weight (t)
    XCMD5005001000≤50≤10-2520-5015*29.58.2
    150030-6018.5*211.810.5
    200040-7022*214.512.8
    250050-8030*21816.3
    XCMD6506501000≤60≤10-2530-8045*212.310.5
    150050-10055*218.516
    200060-16075*22321
    250075-22090*22825
    XCMD7507501000≤70≤10-3050-15055*22321
    150080-18075*226.524.5
    2000100-20090*23027.2
    2500120-250110*233.830.8
    XCMD8508501000≤75≤10-30100-22075*22623.5
    1500200-40090*231.528.5
    2000300-500110*23633
    2500350-650132*23936
    XCMD100010001000≤100≤10-30250-45090*246.841
    1500350-550110*25246.2
    2000500-700132*25852.5
    2500650-800160*26560
    XCMD120012001500≤120≤10-30350-900160*28173
    2000450-1000185*29385
    2500600-1200220*210698
