Widely Used Limestone Crusher Machine 30KW Limestone Pulverizer

Ask Lasest Price
Brand Name :	BENO
Model Number :	XCE4060
Certification :	CE, ISO9001
Price :	USD 13,356.16-15,725.81 one set
Payment Terms :	L/C, T/T
Supply Ability :	400 set / year
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

Widely Used Limestone Crusher Machine 30KW Limestone Pulverizer

Limestone Crushing Jaw Rock Crusher Block Material Crushing Widely Used

Equipment Principle

The mine crushing production line is the crushing process of breaking huge stones into small stones. The first crusher is usually the "main" crusher. The most durable crusher with the longest service history is the Jaw Rock Crusher. When feeding the Jaw Rock Crusher, the material is poured into the crushing chamber from the top inlet, and the movable jaw plate is driven by the eccentric shaft to squeeze the material to the fixed jaw plate, which will crush it into smaller stones. Eccentric motion is usually driven by the pulley fixed at both ends of the eccentric shaft driven by the motor.

Equipment Characteristics

1. Low noise and dust.

2. Large crushing ratio and uniform product size.

3. Simple structure and reliable operation.

4. Equipment maintenance is simple.

Technical Reference Data

Model	Feed port size (mm)	Maximum feed particle size (mm)	Adjustment range of outlet (mm)	Production capacity (t/h)	Power (kw)	Rotating speed (r/min)	Weight (t)
XCE2540	250*400	210	20-80	5-20	15	300	2.8
XCE4060	400*600	340	40-100	16-54	30	275	6.5
XCE5075	500*750	425	50-100	30-85	55	275	10.3
※XCE40108	400*1080	340	40-100	30-100	75	250	10.8
※XCE5013	500*1300	425	50-120	50-150	90	275	15.6
※XCE5015	500*1500	425	50-120	60-185	110	275	18.3
※XCE5712	570*1200	475	50-130	80-210	132	275	17.8
XCE6090	600*900	500	65-160	50-150	75	250	15.5
XCE75106	750*1060	630	80-140	50-208	110	250	27.5
XCE9012	900*1200	750	95-165	100-238	132	200	50
XCE1012	1000*1200	850	105-175	295-350	160	200	52
XCE1215	1200*1500	1020	150-300	300-800	220	180	100.8

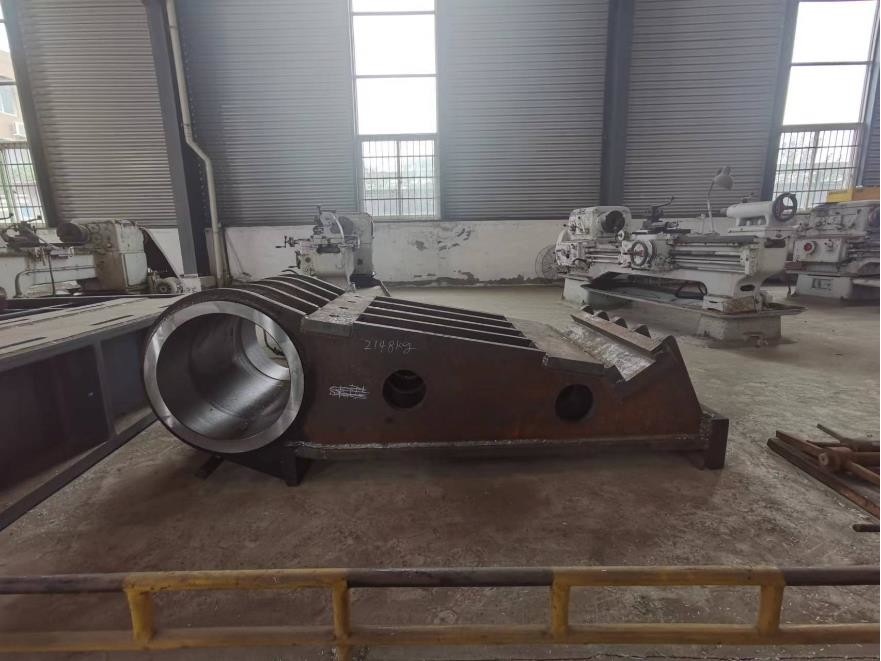

Picture Display
Widely Used Limestone Crusher Machine 30KW Limestone Pulverizer
