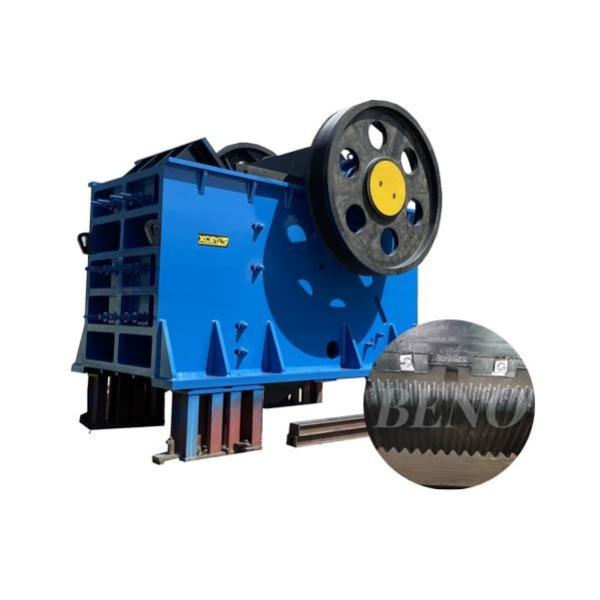

    Smooth Operation Jaw Rock Crusher Hard Rock Breaking Machine ISO9001 Rustproof

    Ask Lasest Price
    Brand Name : BENO
    Model Number : XCE5075
    Certification : CE, ISO9001
    Price : USD 21,164.38-24,919.35 one set
    Payment Terms : L/C, T/T
    Supply Ability : 400 set / year
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Smooth Operation Jaw Rock Crusher Hard Rock Breaking Machine ISO9001 Rustproof

    Basalt Crushing Jaw Rock Crusher Rough Breaking Equipment Smooth Operation
    Equipment Principle
    The movable jaw is suspended on the eccentric shaft and can swing left and right. When the eccentric shaft rotates, the connecting rod moves up and down, driving the two thrust plates to also move back and forth, thus pushing the moving jaw to move left and right to realize crushing and unloading. The crushing ratio of this Jaw Rock Crusher is generally 3-6. The movement track is simple and belongs to simple swing jaw crusher. The structure of the equipment is compact and simple, and the force of transmission parts such as eccentric shaft is small; Due to the small vertical displacement of the moving jaw, there is less excessive breakage of materials during processing, and the wear of the moving jaw plate is small.
    Equipment Characteristics
    1. The lubrication system is safe and reliable, the parts are easy to replace, and the equipment maintenance is simple.
    2. Simple structure, reliable operation and low operating costs.
    3. The discharge port can be adjusted in a wide range to meet the requirements of different users.
    Technical Reference Data
    ModelFeed port size (mm)Maximum feed particle size (mm)Adjustment range of outlet (mm)Production capacity (t/h)Power (kw)Rotating speed (r/min)Weight (t)
    XCE2540250*40021020-805-20153002.8
    XCE4060400*60034040-10016-54302756.5
    XCE5075500*75042550-10030-855527510.3
    ※XCE40108400*108034040-10030-1007525010.8
    ※XCE5013500*130042550-12050-1509027515.6
    ※XCE5015500*150042550-12060-18511027518.3
    ※XCE5712570*120047550-13080-21013227517.8
    XCE6090600*90050065-16050-1507525015.5
    XCE75106750*106063080-14050-20811025027.5
    XCE9012900*120075095-165100-23813220050
    XCE10121000*1200850105-175295-35016020052
    XCE12151200*15001020150-300300-800220180100.8

    What is the difference between jaw crusher and stone crusher

    Name/

    diffrence

    Jaw crusherStone crusher

    Smooth Operation Jaw Rock Crusher Hard Rock Breaking Machine ISO9001 Rustproof


    (example)

    DefinitionA jaw crusher is a primary crushing machine that uses compressive force to reduce the size of large rocks and ores into smaller particles. It consists of a fixed jaw and a movable jaw, forming a V-shaped chamber where the material is fed and crushed.The term "stone crusher" is a broader term that encompasses various types of crushers, including jaw crushers. It refers to a machine used to crush stones or rocks into smaller sizes for construction or other purposes. Stone crushers can include jaw crushers, impact crushers, cone crushers, and more.
    Crushing PrincipleA jaw crusher operates by squeezing the material between two jaws, one fixed and one movable. The movable jaw exerts force on the rock and pushes it against the fixed jaw, crushing the material.As a general term, stone crushers can employ different crushing principles depending on the specific type of crusher. For example, impact crushers use the principle of impact to crush the material, while cone crushers utilize compression and crushing between surfaces.
    Application and UseJaw crushers are primarily used for primary crushing in various industries, including mining, quarrying, and recycling. They are commonly used to process large-sized rocks or ores and produce smaller-sized materials for further processing or use.The term "stone crusher" encompasses a wider range of crushers used for different applications. Stone crushers can be used in various industries such as construction, mining, and demolition to crush different types of stones or rocks into smaller sizes for specific purposes, such as aggregate production or road construction.
    Design and FeaturesJaw crushers are characterized by a fixed jaw and a movable jaw. They typically have a sturdy design, with heavy-duty construction to withstand high crushing forces. Some jaw crushers may have additional features such as a toggle plate system to provide overload protection or an adjustable discharge opening for controlling the size of the crushed material.Since the term "stone crusher" encompasses various types of crushers, the design and features can greatly vary depending on the specific type. For example, cone crushers have a different design with a cone-shaped crushing chamber, while impact crushers may have features like adjustable rotor speed or a hydraulic opening mechanism for ease of maintenance.
