Large Throughput Limestone Feeder Industrial Apron Conveyor Wear Resistant Equipment

Ask Lasest Price
Brand Name :	BENO
Model Number :	XCBW1008
Certification :	CE, ISO9001
Price :	USD 60,273.97-70,967.74 one set
Payment Terms :	L/C, T/T
Supply Ability :	200 sets / year
Delivery Time :	35 days

Add to Cart

Product Details
Company Profile

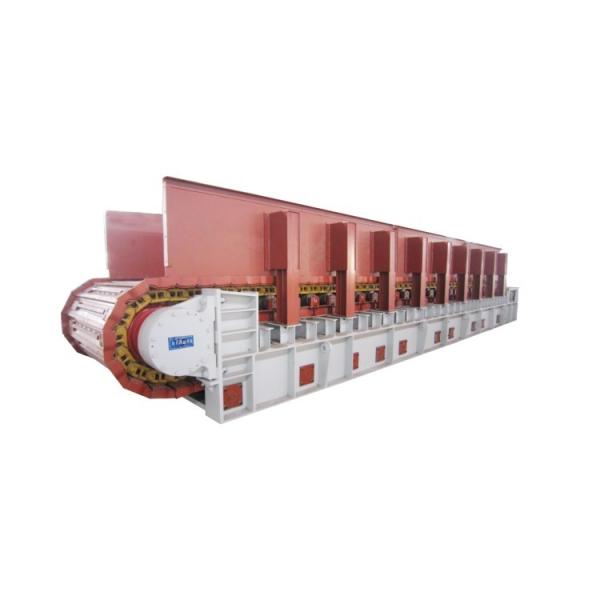

Large Throughput Limestone Feeder Industrial Apron Conveyor Wear Resistant Equipment

Limestone Feeding Apron Plate Feeder Large Throughput Wear-Resistant Equipment

Equipment Description

The model of this Apron Plate Feeder is XCBW1008, the chain plate width of this equipment is 1000 mm, and the chain length is 8000 mm, which increases the length of the chain by 2000 mm on the basis of XCBW1006. In this way, the material can be evenly conveyed into the crushing equipment during the feeding process. The weight of this Apron Plate Feeder is 20 tons, the motor power used is 15 kW, and the speed of the chain is Wie 0.05-2 rpm. The production capacity of this equipment is 70-200 tons per hour, with stable output and stable operation.

Technical Reference Data

Model	Chain plate width (mm)	plate chain length (mm)	Maximum feed side length (mm)	Production capacity (t/h)	Chain speed (r/min)	Power (kw)	Weight (t)
XCBW8005	800	5000	≤400	50-150	0.05-0.2	7.5	13.8
XCBW1006	1000	6000	≤450	70-200	0.05-0.2	11	17.5
XCBW1008		8000				15	20
XCBW1010		10000				15	22.8
XCBW1013		13000				18.5	26.5
XCBW1206	1200	6000	≤650	120-280	0.05-0.2	18.5	21
XCBW1208		8000				18.5	23.8
XCBW1210		10000				22	25.6
XCBW1212		12000				22	28.5
XCBW1506	1500	6000	≤800	200-600	0.05-0.2	22	26.5
XCBW1508		8000				22	29.5
XCBW1513		13000				30	36.8
XCBW1608	1600	8000	≤850	220-680	0.05-0.2	37	31.3
XCBW1810	1800	10000	≤850	280-820	0.05-0.2	37	38.6
XCBW2008	2000	8000	≤1000	330-980	0.05-0.2	45	42.8

Equipment Delivery
