    70 TPH Industrial Apron Conveyors High Impact Material Applicability

    Ask Lasest Price
    Brand Name : BENO
    Model Number : XCBW1013
    Certification : CE, ISO9001
    Price : USD 79,863.01-94,032.26 one set
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets / year
    Delivery Time : 35 days
    • Product Details
    • Company Profile

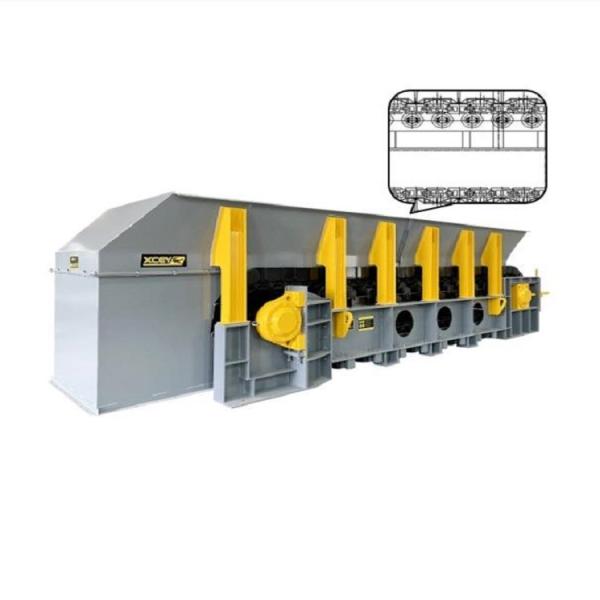

    70 TPH Industrial Apron Conveyors High Impact Material Applicability

    70-200 TPH Output Apron Plate Feeder Strong Material Applicability
    Equipment Description
    The Apron Plate Feeder drives the coupling shaft to rotate through the driving device (motor), and the sprocket with teeth engages to drive the chain to move, so as to drive the material forward and complete the purpose of conveying and feeding.
    Apron Plate Feeder is an auxiliary equipment for transportation machinery. It is used for continuous and uniform feeding from the silo to the primary crusher in the crushing and grading workshop of large concentrators and in the cement, building materials and other departments. It can also be used for short-distance transportation of materials with large particle size and specific gravity.
    Technical Reference Data
    ModelChain plate width (mm)plate chain length (mm)Maximum feed side length (mm)Production capacity (t/h)Chain speed (r/min)Power (kw)Weight (t)
    XCBW80058005000≤40050-1500.05-0.27.513.8
    XCBW100610006000≤45070-2000.05-0.21117.5
    XCBW100880001520
    XCBW10101000022.8
    XCBW10131300018.526.5
    XCBW120612006000≤650120-2800.05-0.218.521
    XCBW1208800023.8
    XCBW1210100002225.6
    XCBW12121200028.5
    XCBW150615006000≤800200-6000.05-0.22226.5
    XCBW1508800029.5
    XCBW1513130003036.8
    XCBW160816008000≤850220-6800.05-0.23731.3
    XCBW1810180010000≤850280-8200.05-0.23738.6
    XCBW200820008000≤1000330-9800.05-0.24542.8

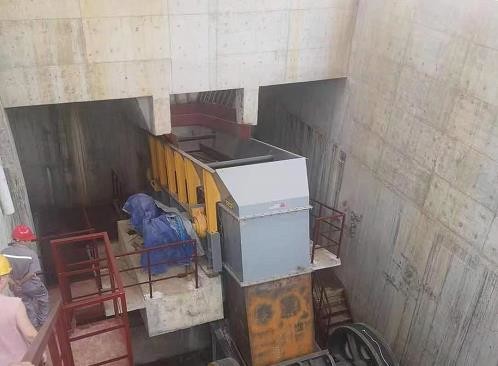

    Installation Site

    70 TPH Industrial Apron Conveyors High Impact Material Applicability
