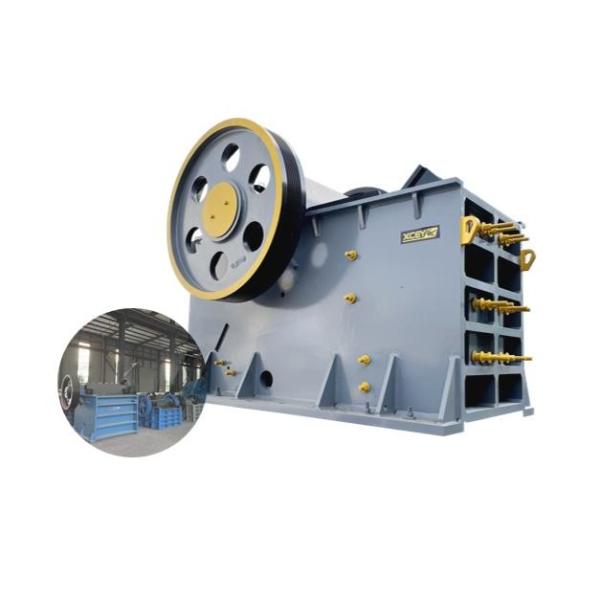

This equipment is called Hydraulic Jaw Rock Crusher, and its model
is XCEV515. This Jaw Rock Crusher is mainly composed of frame,
eccentric shaft, movable jaw assembly, pull rod spring, pulley,
motor and other components. It is a equipment commonly used in the
coarse crushing of large materials, which can break these large
materials into smaller aggregates. The structure of this Jaw Rock
Crusher is relatively simple, and the design principle of single
pendulum is adopted, which is convenient for later maintenance and
replacement of wear-resistant parts. The weight of the Jaw Rock
Crusher is 18.2 tons, which is very stable and has little
vibration.
1. Application field
Sand and gravel yard, mining, coal mining, concrete mixing plant,
dry powder mortar, power plant desulfurization, quartz sand, etc
2. Introduction
The European version jaw crusher is a highly favored crushing
equipment in the market, suitable for medium and fine crushing of
ores and rocks with compressive strength not exceeding 280MPa,
especially for hard and strongly corrosive materials. It is
suitable for industrial sectors such as metallurgy, mining,
chemical engineering, cement, construction, refractory materials,
and ceramics.
3. Working principle
The European version jaw crusher mainly consists of a frame part,
an eccentric shaft rotating part, a crushing chamber working part,
a safety device, a discharge port adjustment device, etc.
The crushing method of the European version jaw crusher is a curved
extrusion type. The electric motor drives the belt and pulley,
causing the moving jaw to swing up and down through an eccentric
shaft. When the moving jaw pushes the moving jaw plate towards the
fixed jaw plate, the material is crushed or chopped. When the
moving jaw and the moving jaw plate retreat under the action of the
eccentric shaft and spring, the previously crushed or split
material is discharged from the lower discharge port of the jaw
plate. With the continuous rotation of the electric motor, the
crusher jaw periodically crushes and discharges materials,
achieving mass production.
4. Characteristics
4.1 Reliability
Adopting new manufacturing processes and selected manufacturing
materials, such as the movable jaw assembly made of high-quality
cast steel, and the heavy-duty eccentric shaft processed with
forged blanks, the equipment has good reliability and durability.
4.2. Higher strength
By using finite element analysis technology, the overall cast steel
bearing seat ensures a complete fit with the frame, greatly
enhancing the radial strength of the bearing seat and giving the
equipment higher strength.
4.3. Quick and reliable adjustment
The crushing chamber adopts a symmetrical "V" shaped structure, and
the discharge port adopts a wedge adjustment device, making the
adjustment simpler, faster, and more reliable.
4.4. Stronger load-bearing capacity
Larger and more durable eccentric shaft bearings and toothed guards
enhance the equipment's load-bearing capacity, yield, and service
life.
