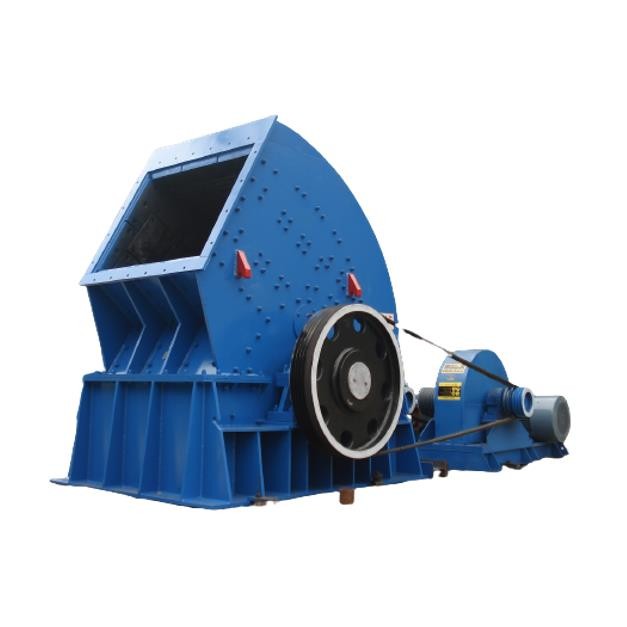

Stone Crushing Mining Hammer Crusher Less Than 600 Mm Feed Size
Large Reduction Ratio
Product Description
Hammer crushers are powerful mechanical devices designed for
crushing and pulverizing materials into smaller particles. They are
widely used in industries such as mining, construction, and
metallurgy due to their efficient operation and versatility. Hammer
crushers operate on the principle of impact, where the hammers
mounted on a rotating rotor strike the material to be crushed.
The working principle of a hammer crusher involves the rotation of
the rotor at high speed. The material is fed into the crusher
chamber and is impacted by the rapidly moving hammers. The
high-speed impact force breaks the material into smaller particles,
which then pass through the screen openings in the crusher's
housing. The crushed material is discharged through the bottom of
the crusher.
One of the notable characteristics of hammer crushers is their
ability to handle a wide range of materials. They can effectively
crush brittle and medium-hard materials, such as limestone, coal,
gypsum, and ores. This versatility makes them suitable for various
applications, including primary and secondary crushing in mining
operations, as well as in the construction of roads, buildings, and
infrastructure.
Hammer crushers offer several advantages that contribute to their
widespread use. Firstly, they provide high crushing ratios,
ensuring efficient reduction of material size. This results in a
higher production rate and improved particle shape.
Additionally, hammer crushers are known for their robust
construction and durability. They are designed with heavy-duty
components to withstand the high impact forces generated during
operation. This enables them to handle large volumes of material
and ensures a long service life.
Hammer crushers also offer the advantage of easy maintenance. They
are equipped with easily replaceable wear parts, such as hammers
and screens, which can be quickly and cost-effectively replaced
when worn. Regular maintenance of the crusher, including
lubrication and inspection, helps to optimize its performance and
prolong its lifespan.
Furthermore, hammer crushers can be customized to suit specific
requirements. They are available in various sizes and
configurations, allowing for the selection of the most suitable
crusher for a given application. The adjustable gap between the
hammers and the screen ensures control over the final product size.
Mining Hammer Crusher is a new type of crushing equipment that is
improved on the basis of traditional crushing equipment and
according to the actual situation of the crushing industry today.
Mining Hammer Crusher is applicable to breaking brittle materials
with compressive strength less than 150MPa, such as limestone,
bluestone, coal gangue, coal mine, etc.
Equipment Advantages
1. The feeding particle size of Mining Hammer Crusher is large, and
the discharging particle size range is less than 70 mm, and the
crushing ratio is large.
2. The Mining Hammer Crusher has the advantage of large output. The
output of this equipment is 100-160 tons per hour.
3. The material broken by Mining Hammer Crusher has good particle
shape and low flakiness rate.
4. Reasonable structure, increased material throughput, and solved
the problem that traditional equipment is easy to block.
Technical Reference Data
| Model | Diameter of rotor (mm) | Length of rotor (mm) | Maximum feed side length (mm) | Discharge granularity (mm) | Production capacity (t/h) | Power (kw) | Weight (t) |
| XCCZ-Z1308 | 1310 | 790 | ≤600 | 0-70 | 100-160 | 132 | 14.6 |
| XCCZ-Z1310 | 1310 | 1050 | ≤700 | 0-70 | 120-200 | 160 | 15.8 |
| XCCZ-Z1510 | 1500 | 900 | ≤700 | 0-70 | 150-230 | 132*2 | 21.8 |
| XCCZ-Z1512 | 1500 | 1160 | ≤750 | 0-80 | 220-350 | 160*2 | 24.5 |
| XCCZ-Z1615 | 1650 | 1452 | ≤1000 | 0-80 | 400-550 | 200*2 | 34 |
FAQ
Q: Why we believe in BENO ECEP?
A: 1. We have more than 30 years experience.
2.We are a professional company integrating production, industry
and trade of mine crushing and screening equipment in China. Our
equipment keeps innovating with the changes of the times, and can
better achieve the crushing effect required by buyers.
3. All our products have passed the CE and ISO9001 certification,
and the quality is guaranteed.
Q: Delivery time?
A: About 1-3 months. Consult customer service for details.
Q: Payment methods?
A: L/C, T/T, RMB account.
Q: After-sale service?
A: Provide remote technical guidance.
