90KW 45 To 190 TPH Granite Cone Crusher Strong Material Adaptability

45-190 TPH Output Cone Crusher Granite Crushing Strong Material Adaptability

Equipment Description

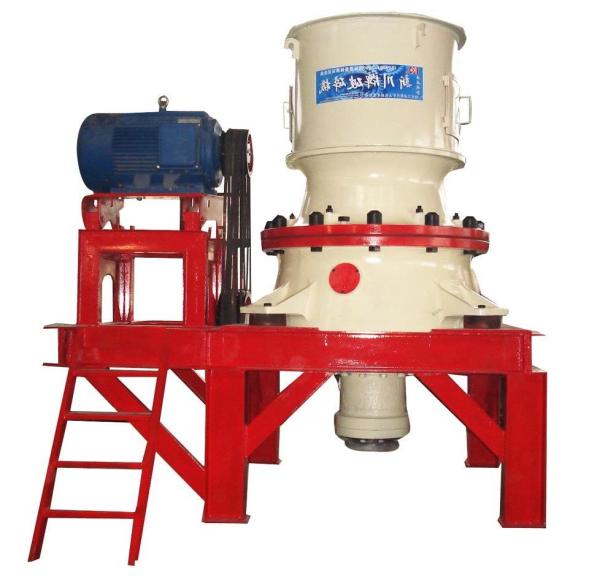

This equipment is a crusher commonly used for crushing hard materials, named single cylinder hydraulic Cone Crusher, which is widely used in construction, mining, metallurgy, building materials and other industries. Its main components include upper frame assembly, lower frame assembly, drive gear, motor, sensor, accumulator, oil station and PLC automatic operation system.

The model of this single cylinder hydraulic Cone Crusher is XCPG100Z, the maximum feed size is 100 mm, and the discharge size is 20-45 mm. Its production capacity is 45-190 tons per hour, and the motor power is 90 kW. The total weight of the single cylinder hydraulic Cone Crusher is 8.2 tons.

Technical Reference Data

Model	Cavity type	Maximum feed size (≤mm)	Discharge port adjustment range (mm)	Production capacity (t/h)	Power (kw)	Weight (t)
XCPG100	C	200	40-100	75-260	75-90	9
	Z	100	20-45	45-190	90	8.2
	X	40	6-20	35-85	90	7.2
XCPG200	C	250	45-105	125-325	132-220	15.5
	Z	150	25-55	65-240		14.8
	X	60	8-35	45-165		13.6
XCPG300	C	300	45-105	185-440	160-315	20.8
	Z	160	30-65	120-325		19.5
	X	80	10-40	75-240		15.9
XCPG500	C	350	50-105	350-870	250-335	34
	Z	180	45-80	220-500		33.2
	X	85	12-50	140-350		27.3
