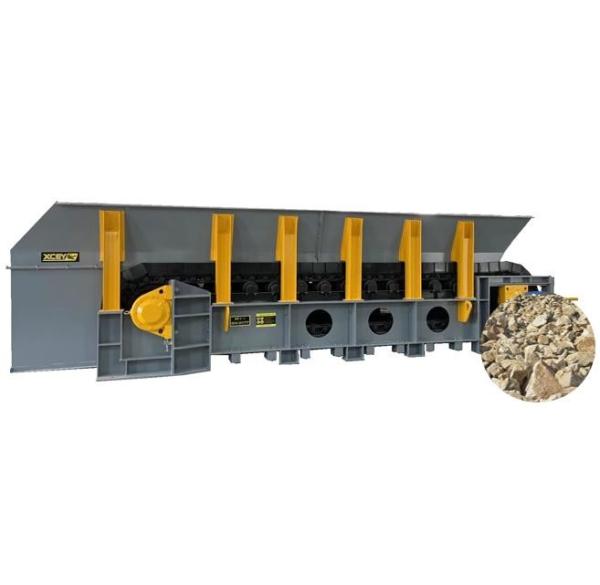

    Simple Structure 37KW Apron Plate Feeder 220-680 TPH Heavy Duty Plate Feeder

    Ask Lasest Price
    Brand Name : BENO
    Model Number : XCBW1608
    Certification : CE, ISO9001
    Price : USD 94,328.77-111,064.52 one set
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets / year
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    Simple Structure 37KW Apron Plate Feeder 220-680 TPH Heavy Duty Plate Feeder

    Simple Structure Apron Plate Feeder 220-680 TPH Long Service Life


    Product Principle

    The main power of the Apron Plate Feeder is the motor, which is connected with the coupling to drive the reducer to drive the sprocket shaft to rotate. Its transmission mode adopts sprocket chain structure, which can work under severe working conditions. The Apron Plate Feeder is characterized by heavy load and low speed, and can complete the transportation of heavy objects. The chain plate is driven by the chain to move in a straight line. If the chain plate is installed on the support of the supporting roller and the towing wheel of the frame, the chain needs to be equipped with corresponding tensioning device to ensure the correct engagement of the chain and sprocket, so as to complete the purpose of conveying materials.


    Technical Reference Data

    ModelChain plate width (mm)plate chain length (mm)Maximum feed side length (mm)Production capacity (t/h)Chain speed (r/min)Power (kw)Weight (t)
    XCBW80058005000≤40050-1500.05-0.27.513.8
    XCBW100610006000≤45070-2000.05-0.21117.5
    XCBW100880001520
    XCBW10101000022.8
    XCBW10131300018.526.5
    XCBW120612006000≤650120-2800.05-0.218.521
    XCBW1208800023.8
    XCBW1210100002225.6
    XCBW12121200028.5
    XCBW150615006000≤800200-6000.05-0.22226.5
    XCBW1508800029.5
    XCBW1513130003036.8
    XCBW160816008000≤850220-6800.05-0.23731.3
    XCBW1810180010000≤850280-8200.05-0.23738.6
    XCBW200820008000≤1000330-9800.05-0.24542.8

    Product Loading

    Simple Structure 37KW Apron Plate Feeder 220-680 TPH Heavy Duty Plate Feeder


    Our Service

    Simple Structure 37KW Apron Plate Feeder 220-680 TPH Heavy Duty Plate Feeder
