70-120 TPH Apron Plate Feeder Customizable Stone Conveying
Equipment
Equipment Description
Apron Plate Feeder, also known as heavy-duty plate chain feeder, is
mainly used in mining, coal, chemical, metallurgy and other
industries for continuous and uniform feeding of large block
materials.
The Apron Plate Feeder is composed of a feeding trough, a
transmission chain, a sprocket, a plate chain, and a driving
device. The transmission chain drives the plate chain to move
forward, and the material in the feeding trough is transported to
the discharge port through the movement of the plate chain.
The plate chain of the Apron Plate Feeder is made of high-strength
steel, which has high wear resistance and can withstand the impact
of large materials. The feeding capacity of the heavy-duty plate
feeder is high, and it can be adjusted by changing the running
speed of the plate chain. The length and width of the feeding
trough can also be customized according to the site requirements.
In addition, the Apron Plate Feederr can be equipped with a
pre-screening device to remove the fine materials in the raw
materials, which can ensure the smooth operation of the subsequent
crushing and screening equipment. The feeding process of the
heavy-duty plate feeder is stable and reliable, and it is widely
used in various large-scale production lines.
Equipment Parameter Table
| Model | Chain plate width (mm) | plate chain length (mm) | Maximum feed side length (mm) | Production capacity (t/h) | Chain speed (r/min) | Power (kw) | Weight (t) |
| XCBW8005 | 800 | 5000 | ≤400 | 50-150 | 0.05-0.2 | 7.5 | 13.8 |
| XCBW1006 | 1000 | 6000 | ≤450 | 70-200 | 0.05-0.2 | 11 | 17.5 |
| XCBW1008 | 8000 | 15 | 20 |
| XCBW1010 | 10000 | 22.8 |
| XCBW1013 | 13000 | 18.5 | 26.5 |
| XCBW1206 | 1200 | 6000 | ≤650 | 120-280 | 0.05-0.2 | 18.5 | 21 |
| XCBW1208 | 8000 | 23.8 |
| XCBW1210 | 10000 | 22 | 25.6 |
| XCBW1212 | 12000 | 28.5 |
| XCBW1506 | 1500 | 6000 | ≤800 | 200-600 | 0.05-0.2 | 22 | 26.5 |
| XCBW1508 | 8000 | 29.5 |
| XCBW1513 | 13000 | 30 | 36.8 |
| XCBW1608 | 1600 | 8000 | ≤850 | 220-680 | 0.05-0.2 | 37 | 31.3 |
| XCBW1810 | 1800 | 10000 | ≤850 | 280-820 | 0.05-0.2 | 37 | 38.6 |
| XCBW2008 | 2000 | 8000 | ≤1000 | 330-980 | 0.05-0.2 | 45 | 42.8 |

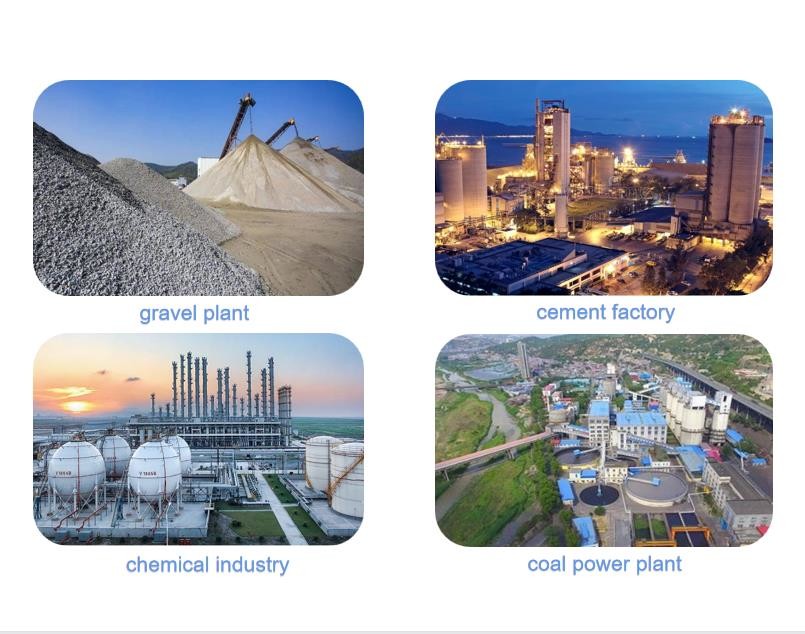

Application Industry
Apron Plate Feeder is widely used in industries such as mining,
metallurgy, coal, chemical engineering, and port. In the mining
industry, it is used to transport large chunks of ore or rock to
crushing equipment. In metallurgy, it can be used to transport
materials such as raw ore or sintered ore. In the coal industry, it
is used in the transportation of coal and other materials. In
chemical engineering, it can be used to transport various types of
materials including chemicals and fertilizers. In port industry, it
is used to transport bulk materials such as cement, grain or sand.
The Apron Plate Feeder is a reliable and efficient conveying
equipment that can handle heavy materials and large volumes, making
it essential in various industries.
