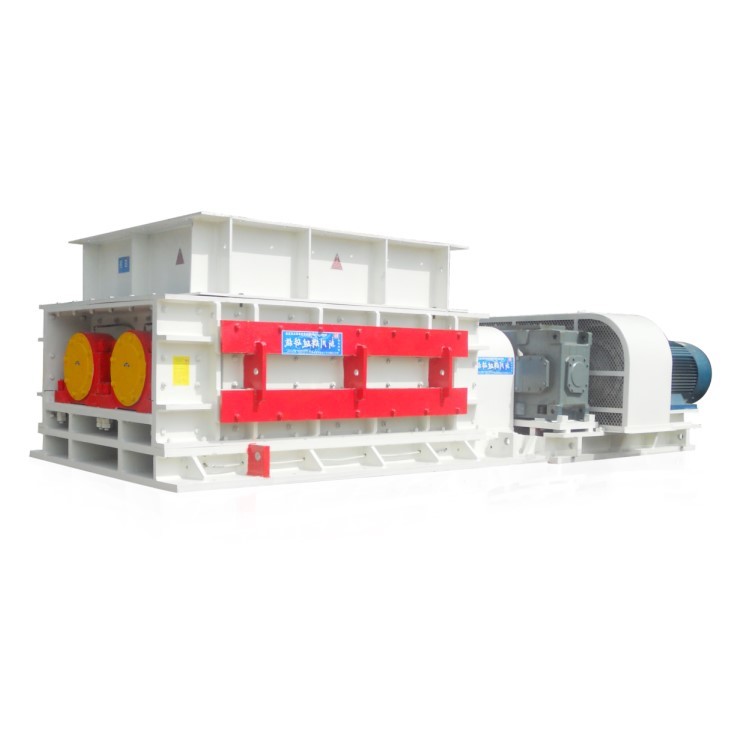

Mine Crushing Tooth Roller Crusher 50-150TPH Small Crushing
Production Line
Scope of Application
Tooth Roller Crusher is widely used in mining, metallurgy, building
materials, coal and other industries. It is especially suitable for
crushing brittle materials below medium hardness, such as coal,
coke, limestone, clay, etc. The Tooth Roller Crusher has compact
and simple structure, high crushing efficiency, low power
consumption and convenient maintenance. Compared with traditional
crushers, it has the advantages of small size, low noise, less
dust, and less wear on equipment. In addition, the Tooth Roller
Crusher can also be used as a pre-grinding device before the ball
mill to further improve the grinding efficiency of the ball mill
system. In general, the Tooth Roller Crusher has a wide range of
applications and is an ideal equipment for crushing and grinding
materials in various industries.
Mining Industry
Double toothed roll crushers are extensively used in the mining
industry for the efficient crushing of minerals and ores. They can
handle a wide range of materials, including coal, limestone,
gypsum, trona, shale, bauxite, oil shale, coke, salt, lime, glass,
kaolin, brick, and clay. These crushers are often employed as
primary or secondary crushers in mining operations.
Construction and Building Materials
In the construction industry, double toothed roll crushers are
utilized for crushing aggregates, such as gravel and sand. They are
suitable for producing high-quality materials required for various
construction applications, including road construction, building
foundations, concrete production, and infrastructure development.
Power Plants
Double toothed roll crushers find application in power plants,
particularly in coal handling systems. They are used to crush coal
to a desired particle size for efficient combustion in power
generation processes.
Metallurgy and Steel Industry
The metallurgical and steel industry utilizes double toothed roll
crushers for the crushing of raw materials, such as iron ore,
sinter, coke, and various alloys. These crushers play a crucial
role in the processing of materials used in steel production and
metallurgical processes.
Chemical Industry
Double toothed roll crushers are employed in the chemical industry
for the crushing of chemical materials, including fertilizers,
salts, phosphates, and various industrial chemicals. These crushers
are used to reduce the particle size of these materials for further
processing or to facilitate their handling and storage.
Cement Industry
In the cement manufacturing process, double toothed roll crushers
are used for the primary and secondary crushing of raw materials,
such as limestone, shale, clay, and marl. These crushers help in
the production of the desired particle size distribution for the
preparation of raw materials before the cement kiln process.
Technical Reference Data
| Model | Diameter of roller (mm) | Length of roller (mm) | Maximum side length of feeding material (mm) | Grain size of discharging material(mm) | Production capacity (t/h) | Power (kw) | Soft connection weight (t) | Direct connection weight (t) |
| XCMD500 | 500 | 1000 | ≤50 | ≤10-25 | 20-50 | 15*2 | 9.5 | 8.2 |
| 1500 | 30-60 | 18.5*2 | 11.8 | 10.5 |
| 2000 | 40-70 | 22*2 | 14.5 | 12.8 |
| 2500 | 50-80 | 30*2 | 18 | 16.3 |
| XCMD650 | 650 | 1000 | ≤60 | ≤10-25 | 30-80 | 45*2 | 12.3 | 10.5 |
| 1500 | 50-100 | 55*2 | 18.5 | 16 |
| 2000 | 60-160 | 75*2 | 23 | 21 |
| 2500 | 75-220 | 90*2 | 28 | 25 |
| XCMD750 | 750 | 1000 | ≤70 | ≤10-30 | 50-150 | 55*2 | 23 | 21 |
| 1500 | 80-180 | 75*2 | 26.5 | 24.5 |
| 2000 | 100-200 | 90*2 | 30 | 27.2 |
| 2500 | 120-250 | 110*2 | 33.8 | 30.8 |
| XCMD850 | 850 | 1000 | ≤75 | ≤10-30 | 100-220 | 75*2 | 26 | 23.5 |
| 1500 | 200-400 | 90*2 | 31.5 | 28.5 |
| 2000 | 300-500 | 110*2 | 36 | 33 |
| 2500 | 350-650 | 132*2 | 39 | 36 |
| XCMD1000 | 1000 | 1000 | ≤100 | ≤10-30 | 250-450 | 90*2 | 46.8 | 41 |
| 1500 | 350-550 | 110*2 | 52 | 46.2 |
| 2000 | 500-700 | 132*2 | 58 | 52.5 |
| 2500 | 650-800 | 160*2 | 65 | 60 |
| XCMD1200 | 1200 | 1500 | ≤120 | ≤10-30 | 350-900 | 160*2 | 81 | 73 |
| 2000 | 450-1000 | 185*2 | 93 | 85 |
| 2500 | 600-1200 | 220*2 | 106 | 98 |

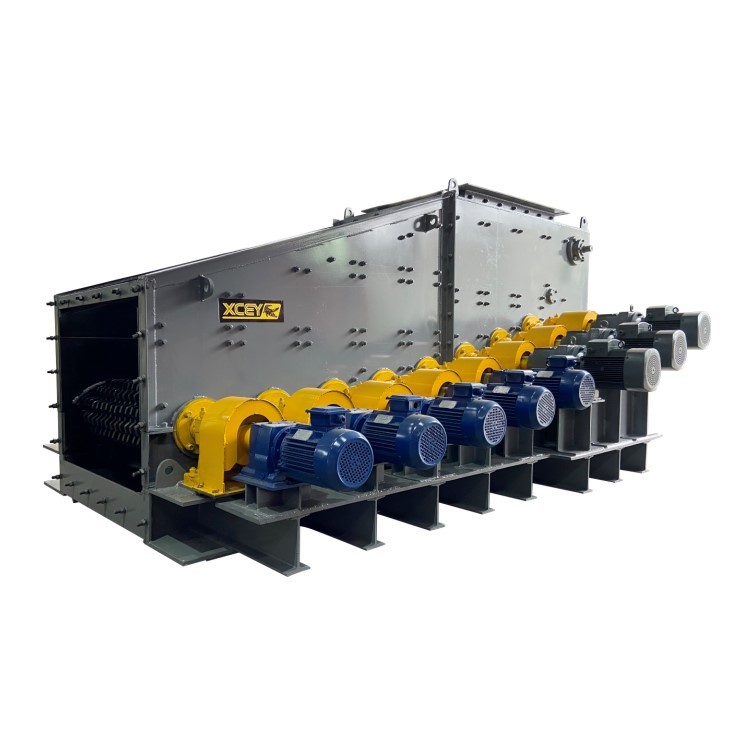

Related Equipment Advantages
 | ① High one-time finished product rate, about 60%-75% ② One-time modification rate is about 80%, similar to a sphere ③ Low waste rate, less dust ④ Simple structure, high safety |
① Continuous and uniform feeding, no material jam ② High load-bearing, wear resistance and safety ③ Simple structure, easy to operate |  |
 | ① High wear resistance, long life ② Simple structure, high cost performance |
①Simple structure and high safety ②Replacing the traditional screening link, with high-efficiency
screening effect ③High-efficiency debris sorting effect |  |
Why is the Tooth Roller Crusher used in the production line?
Tooth Roller Crusher is widely used in crushing production lines
due to its high-efficiency and low-cost operation. Its unique
design enables higher crushing ratios than other crushers,
resulting in less waste and higher product yields. Tooth Roller
Crusher is able to process large volumes of material without
clogging, making them ideal for the mining, construction and
chemical industries. The machine's durable construction and quality
components ensure long-term reliability and low maintenance costs.
Roll Crusher Machine has become an important part of modern
crushing production line due to its high efficiency and affordable
price.
