    Basalt Broken Roll Crusher Machine High Output Limestone Crushing Machine

    Ask Lasest Price
    Brand Name : BENO
    Model Number : XCMD750 * 1500(Z)
    Certification : CE, ISO9001
    Price : USD 151,027.40-177,822.58 one set
    Payment Terms : L/C, T/T
    Supply Ability : 500 sets / year
    Delivery Time : 30-90 days
    • Product Details
    • Company Profile

    Basalt Broken Roll Crusher Machine High Output Limestone Crushing Machine

    Basalt Broken Roll Crusher Machine High Output Limestone Crushing Machine


    Why there is a yield advantage?

    The high production efficiency of the Roll Crusher Machine benefits from the unique design of its crushing teeth. The crushing teeth are staggeredly arranged on the two rollers, which can effectively break the material into small pieces. The crushing teeth are made of high-strength and wear-resistant materials to ensure long-term stable operation of the equipment.

    In addition, the size of the discharge opening can be adjusted according to the actual needs of users. This greatly improves the flexibility of the device and makes it more convenient to use.

    Moreover, the Roll Crusher Machine is equipped with a high-quality motor, which provides strong power for the equipment and ensures the efficient and stable operation of the crusher. The advanced lubrication system ensures the smooth operation of the equipment, reduces the wear and tear of the equipment and prolongs the service life of the equipment.

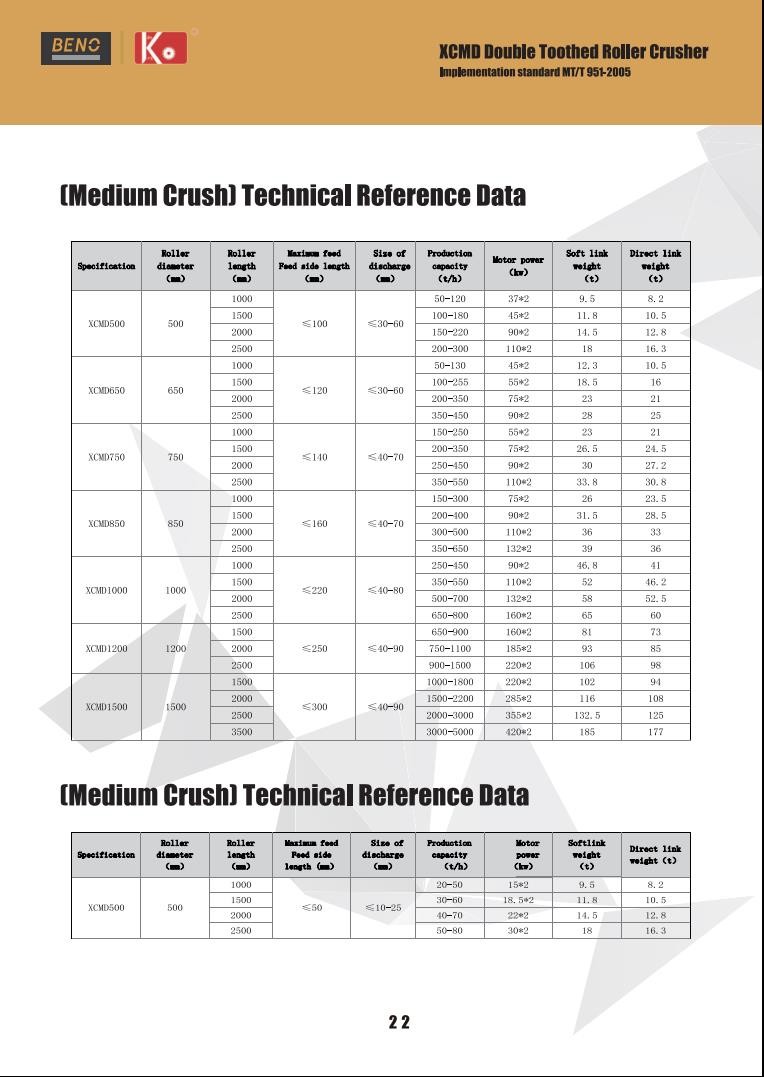

    Technical Reference Data

    ModelDiameter of roller (mm)Length of roller (mm)Maximum side length of feeding material (mm)Grain size of discharging material(mm)Production capacity (t/h)Power (kw)Soft connection weight (t)Direct connection weight (t)
    XCMD5005001000≤50≤10-2520-5015*29.58.2
    150030-6018.5*211.810.5
    200040-7022*214.512.8
    250050-8030*21816.3
    XCMD6506501000≤60≤10-2530-8045*212.310.5
    150050-10055*218.516
    200060-16075*22321
    250075-22090*22825
    XCMD7507501000≤70≤10-3050-15055*22321
    150080-18075*226.524.5
    2000100-20090*23027.2
    2500120-250110*233.830.8
    XCMD8508501000≤75≤10-30100-22075*22623.5
    1500200-40090*231.528.5
    2000300-500110*23633
    2500350-650132*23936
    XCMD100010001000≤100≤10-30250-45090*246.841
    1500350-550110*25246.2
    2000500-700132*25852.5
    2500650-800160*26560
    XCMD120012001500≤120≤10-30350-900160*28173
    2000450-1000185*29385
    2500600-1200220*210698

    Broken Material Type

    Roll Crusher Machine can crush various types of materials such as coal, limestone, basalt, quartzite and other ores. It is also suitable for crushing hard materials such as clinker in cement plants.
