Debris Separation Roller Screening Machine 210-595 TPH High Screening Efficiency

Euipment Description

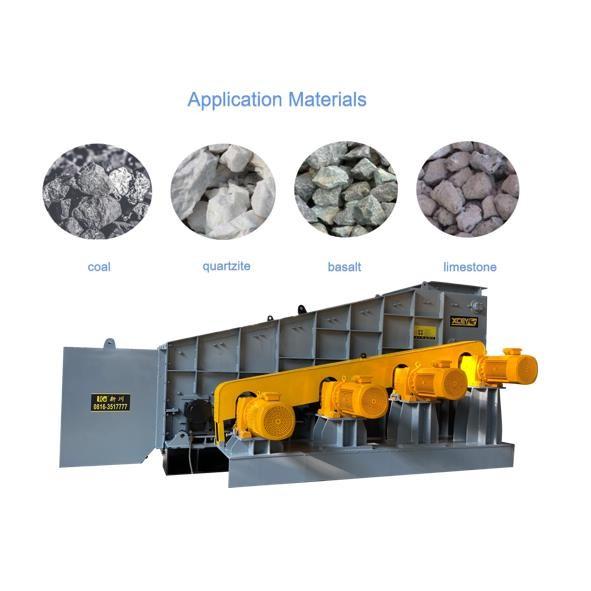

Roller Screening Machines are commonly used in mining, coal preparation plants, and other industries. This type of screen is designed with multiple rollers arranged in a specific pattern to sieve or separate materials based on size.
The rollers in a Roller Screening Machine rotate at different speeds, which helps to effectively separate materials into different grades. Materials that are small enough will pass through the gaps between the rollers, while larger materials will be carried along the surface until they are discharged.
Roller Screening Machines have several advantages over other types of screening equipment. They are able to handle large volumes of materials, require minimal maintenance, and are highly efficient in separating materials based on size. They also have a relatively low power consumption and noise level.
Roller Screening Machines are commonly used in the mining industry for managing materials such as coal, iron ore. They are also used in coal preparation plants to remove impurities and dewater coal before it is transported. Moreover, they have diverse applications in other industries, such as screening of agricultural products like seeds and grains.

Equipment Parameter Table

Equipment Catalogue
The Roller Screening Machine is designed and produced by our company according to the actual situation of the mine crushing and screening industry today. Its biggest feature is that a single motor drives a single shaft to rotate, which greatly improves the safety and stability of the equipment, and can effectively avoid equipment The risk of the shutdown of the whole machine caused by the failure of a single axis reduces the possibility of production shutdown of the enterprise.


Equipment Application
In the general mine crushing and screening production line, the screening equipment is often of irreplaceable importance. Roller Screening Machine can not only improve the crushing efficiency of the crushing equipment, but also improve the efficiency of the entire production line, and can also screen out the materials with the particle size required by customers. ,satisfy customer's request. Its placement can be adjusted according to customer needs.
In recent years, traditional roller screen has been proven to be a robust and effective mechanism for screening fine materials in raw ores. Using a roller screen, the roller disc is formed by a polygonal disk and installed in a staggered configuration on the rotating roller. The rotating roller transports materials, circulates and transports them. The separated fine materials fall through the gaps between the rollers, while the coarse materials are conveyed to the ore discharge port through the roller screen with the assistance of the triangle of the disc. For bulk materials that are difficult to screen, including moist materials with loamy or muddy shale, this screening model seems to be significantly superior to vibrating screening machines, which often exhibit adhesion to these materials. The rotational motion of the roller means that the roller screen is to some extent self-cleaning and will not adhere. In addition, each roll has mud removal teeth to ensure cleanliness. In addition, due to the horizontal conveying of materials through the roller screen, the downstream crusher feeding is stable and consistent; Reduce the workload of the crusher. This can obviously reduce wear and energy consumption, and in some cases, smaller crushers can be used. Therefore, the use of roller screen can usually reduce energy consumption, lower operating costs, and improve operational safety. The compact design generated by horizontal material flow, along with various possible layout options, allows for application in various situations both underground and above ground. This model of equipment is suitable for various operations of materials such as limestone, clay, peat, coal, natural stone, salt, gypsum, etc. Our roller screen can be provided as a single or multi-stage system with variable gap settings to meet the requirements of all customers. Due to the modular length of the roller screen, separation of almost any size can be achieved.

Our Introduction

Sichuan BENO Energy Conservation and Environmental Protection Technology Co., Ltd. (BENO ECEP) is a company with 30 years of experience in the R&D, production and sales of mining screening and crushing equipment.
Since 1991, we have been providing professional crushing solutions for production lines in the cement, chemical, coal, metallurgical and sand & gravel aggregates industries. We also provide mobile crushing products for pit backfill and waste recycling projects.
Our company is committed to providing you with scientific, efficient, environmentally friendly and energy-saving products, reducing your input and production costs, increasing your output value, and finally helping you gain a competitive advantage in the market.
You can always count on BENO ECEP's team and products, and we will strictly follow our mission - to provide you with the highest quality products.
