Crusher Spare Parts Roller Screening Machine Wear-Resistant Gear
Roller
Product Description
The wear-resistant toothed roller is used in the roller screen
series equipment and is the core component of the screening
assembly of this series of equipment. During the operation of the
roller screen, the material is evenly and continuously conveyed to
the feed port by the belt conveyor, and falls on the toothed
rollers arranged in a ladder shape, and rolls forward at a uniform
speed with the rotation of the roller shaft, which is smaller than
the gap between the toothed rollers. The soil impurities, etc. fall
to the belt to be transported out, and the materials that are
larger than the gap between the toothed rollers roll to the front
of the equipment, and fall to another belt to be transported to the
next link.
The main difference between the toothed rollers produced by our
company and those produced by other factories is the tooth shape.
Our company's toothed rollers have an optimized design in terms of
tooth shape, so that the material will not be blocked and cause
equipment failure, and it also has a certain mud scraping effect.
The wear-resistant part is made of high-quality materials, the gear
piece is made of manganese-chromium alloy, the main shaft is made
of round steel, and the liner is made of manganese steel. The
number of gear teeth can be customized according to customer
requirements.
Technical Reference Data
| Product name | Roller Screening Machine Toothed Roller |
| Applications | Cement,chemical,coal,metallurgical and sand&gravel aggregates
industries |
| Material | Gear - Manganese chromium alloy; Spindle - Round steel; Liner -
Manganese steel |
| Model | XCDRS10 series, XCDRS14 series |
| Number | 1000*8, 1000*10,1000*12,1400*8, 1400*10, 1400*12 |
|
| Certificates | CE, ISO |
| Package | Simple package |
Product Advantages
1. High strength: high-quality steel is used, with high tensile
strength and good bearing capacity. They can withstand large loads
and ensure stable operation of the equipment. It maintains its
stability and durability even under harsh working conditions.
2. Precision: It is processed by advanced equipment and technology,
which ensures the precision and consistency of the parts.
3. Safety: It is arranged in steps and screened by height
difference to ensure that there is no vibration during the
operation of the equipment and ensure the safety of the production
line.
4. Easy maintenance: there is almost no need for maintenance, but
regular inspections are required. If you do need to disassemble and
assemble, maintenance is also very convenient.

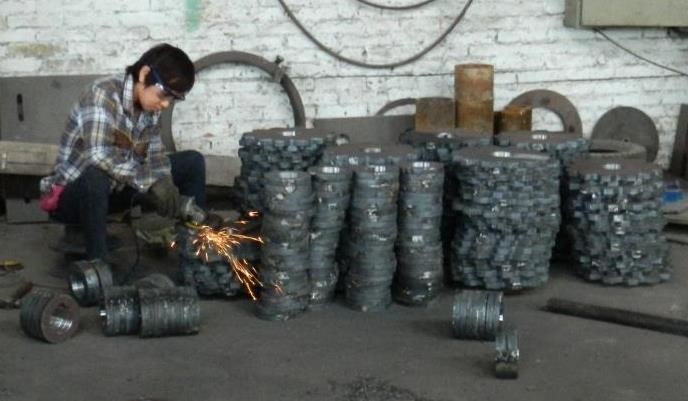

Product Display
FAQ
Q: Why we believe in BENO ECEP?
A: 1. We have more than 30 years experience.
2.We are a professional company integrating production, industry
and trade of mine crushing and screening equipment in China. Our
equipment keeps innovating with the changes of the times, and can
better achieve the crushing effect required by buyers.
3. All our products have passed the CE and ISO9001 certification,
and the quality is guaranteed.
Q: Delivery time?
A: About 1-2 months. Consult customer service for details.
Q: Payment methods?
A: L/C, T/T, RMB account.
Q: After-sale service?
A: Provide remote technical guidance.
