Product Description:
The Roller Screening Machine, or coal roller screen, is a special steel screening equipment for
coal and other materials with a wide range of applications, such as
coal, electricity, environmental protection, and chemical industry. It is highly durable and has a capacity of 364-896TPH and power of 30-75kw.
The Roller Screening Machine is designed to be highly efficient,
with a special steel construction that makes it resistant to
abrasion and corrosion, and it can operate for extended periods of
time. It is also able to handle large amounts of material, with a
high throughput capacity and adjustable speed. As a result, it is
widely used for sorting and screening in many industries.
The Roller Screening Machine is easy to install and operate, and it
requires minimal maintenance, making it an ideal choice for many
industries. It is also highly customizable, allowing it to be
tailored to the specific needs of each application.
Features:
- Product Name: Roller Screening Machine
- Capacity: 364-896TPH
- Type: Screening Machine
- Name: Roller Screening Machine
- Material: Special Steel
- Power: 30-75kw
- Highlight: Roller Screen Equipment, Roller Debris Separator
Technical Parameters:
| Property | Value |
|---|
| Type | Screening Machine |
| Capacity | 364-896TPH |
| Name | Roller Screening Machine |
| Material | Special Steel |
| Application | Coal, Electricity, Environmental Protection, Chemical Industry,
Etc. |
| Power | 30-75kw |
Technical Reference Data
| Model | Roll surface width (mm) | Number of axes | Throughput (t/h) | Feed side length (mm) | Roll shaft clearance (mm) | Screening efficiency (%) | Installed power | Flap drive push rod (optional for for electro hydraulic users) |
| Power (kw) | Number | Model | Thrust (kgf) | Power (w) |
| XCDRS1008 | 1000 | 8 | 140-385 | ≤500 | 25-100 | 80 | 2-4 | 8 | DT or DTY | 300 | 370 |
| XCDRS1010 | 10 | 168-490 | 85 | 3-3.5 | 10 |
| XCDRS1012 | 12 | 210-595 | 90 | 12 |
| XCDRS1408 | 1400 | 8 | 294-700 | ≤700 | 35-120 | 80 | 8 | DT or DTY | 500 | 750 |
| XCDRS1410 | 10 | 364-896 | 85 | 3-7.5 | 10 |
| XCDRS1412 | 12 | 455-1050 | 90 | 12
|
Customization:
Customized Roller Screening Machine from BENO
- Brand Name: BENO

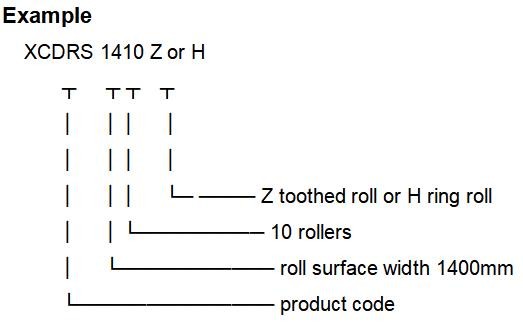

- Model Number: XCDRS1410
- Place of Origin: Sichuan, China
- Power: 30-75kw
- Material: Special Steel
- Application: Coal, Electricity, Environmental Protection, Chemical Industry,
Etc.
- Name: Roller Screening Machine
- Type: Screening Machine
- Keywords: Coal Roller Screen, Roller Screening Machine, Roller Debris
Separator
Support and Services:
Roller Screening Machine Technical Support and Service
Our Roller Screening Machine is designed to provide efficient,
reliable and cost-effective screening solutions for a variety of
applications. Our technical support team is here to help you get
the most out of your machine.
- Pre-purchase technical advice and assistance
- Remote guide installation
- Spare parts supply
FAQ:
- Q1: What is the brand name of the Roller Screening Machine?
- A1: The brand name of the Roller Screening Machine is BENO.
- Q2: What is the model number of the Roller Screening Machine?
- A2: The model number of the Roller Screening Machine is XCDRS1410.
- Q3: Where is the Roller Screening Machine produced?
- A3: The Roller Screening Machine is produced in Sichuan, China.
- Q4: What is the purpose of the Roller Screening Machine?
- A4: The Roller Screening Machine is designed to separate materials
into different sizes for further processing or end products.
- Q5: What materials can the Roller Screening Machine process?
- A5: The Roller Screening Machine can process a wide range of
materials, including coal, ore, etc.
